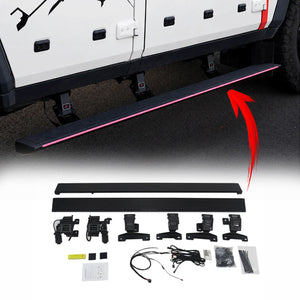

Upgrade vehicle access and exterior functionality with PLOMOR Electric Side Steps with LED Light Strips, designed specifically for the 2023–2026 INEOS Grenadier Station Wagon. The power running boards automatically deploy when any door opens, reducing the step-over height, and retract beneath the rocker panels when the doors close to help preserve the vehicle's original ground clearance and off-road breakover angles.

The system uses high-strength aluminium alloy step panels with a non-slip knurled surface and heavy-duty carbon structural steel mounting brackets. Twin IP67-rated electric motors operate the steps, while the LED variant features integrated RGB LED light strips with Bluetooth control, full-colour customisation, and multiple lighting sequence modes.

Installation uses a non-destructive bolt-on design that matches the factory chassis mounting locations, requiring no drilling, cutting, or body welding. Electrical installation requires connection to the factory OBD port and internal wiring locations, so professional installation is recommended for the wiring components.

Key Features & Highlights

• Vehicle-Specific Fit: Designed specifically for the 2023–2026 INEOS Grenadier Station Wagon.
• Automatic Deploy & Retract: Steps extend when any door opens and retract beneath the rocker panels when the doors close.
• High-Strength Aluminium Step Panels: Extruded aluminium alloy construction with a non-slip knurled surface.
• Heavy-Duty Steel Brackets: Six carbon structural steel mounting brackets with a matte black powder-coated finish.
• Twin Electric Motors: Two high-torque electric motors operate the left and right running boards.
• IP67 Motor Protection: Electric motors are rated IP67 for waterproof and dustproof protection.
• Integrated RGB LED Strips: LED variant features full-colour customisation and multiple lighting sequence modes.
• Bluetooth LED Control: RGB lighting can be controlled via Bluetooth.
• Factory Mounting Integration: Uses existing chassis frame mounting locations and factory holes.
• No Drilling or Cutting: Bolt-on installation requires no chassis drilling, body cutting, or welding.
• Maintains Ground Clearance: Retracts beneath the rocker panels when the doors close.
• Off-Road Clearance: Retracted design helps preserve the original off-road breakover angles.
• Standalone Control System: Includes a dedicated ECU control box and wiring harness.

Technical Specifications

*Applies to the LED variant.

Installation & Compatibility

The running boards use a non-destructive bolt-on installation with the factory chassis mounting locations.

• T-bolts and M10 flange nuts secure the steel brackets to the chassis.
• No drilling, cutting, or body welding is required.
• The main wiring harness is routed through existing chassis access holes and sealed using the supplied waterproof silicone gel.
• The terminal signal line connects to the factory OBD port inside the triangular trim panel on the driver's side.
• Power wiring connects to the internal wiring locations inside the driver's side rest pedal storage box after disassembly.
• The isolated power loop bypasses direct connection to the vehicle's main control modules to avoid error codes or system warnings.

Professional installation is recommended for the electrical wiring components. Users should verify vehicle fitment and confirm all electrical connections before use. For off-road or private-land use where applicable, check local regulations before installation and use.

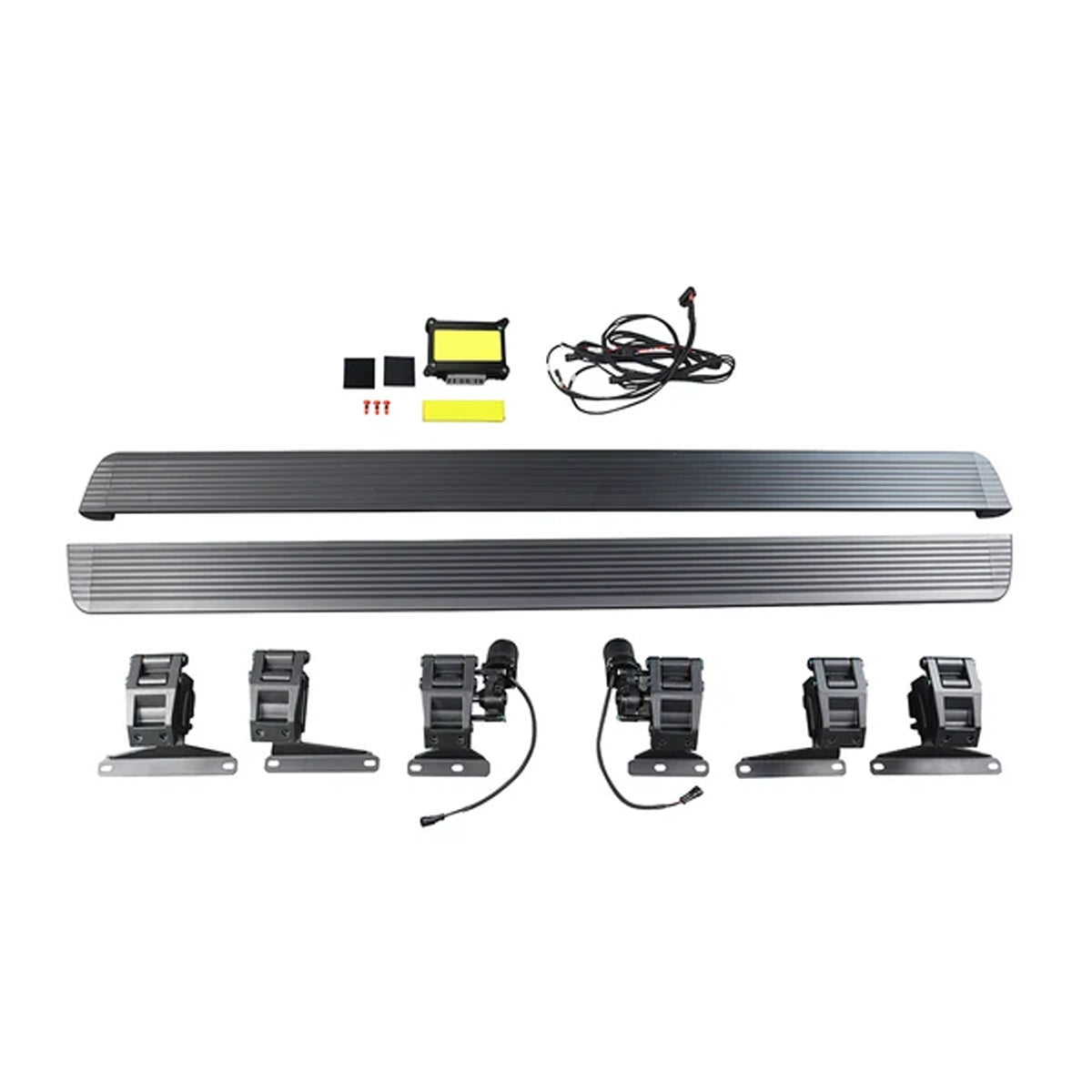

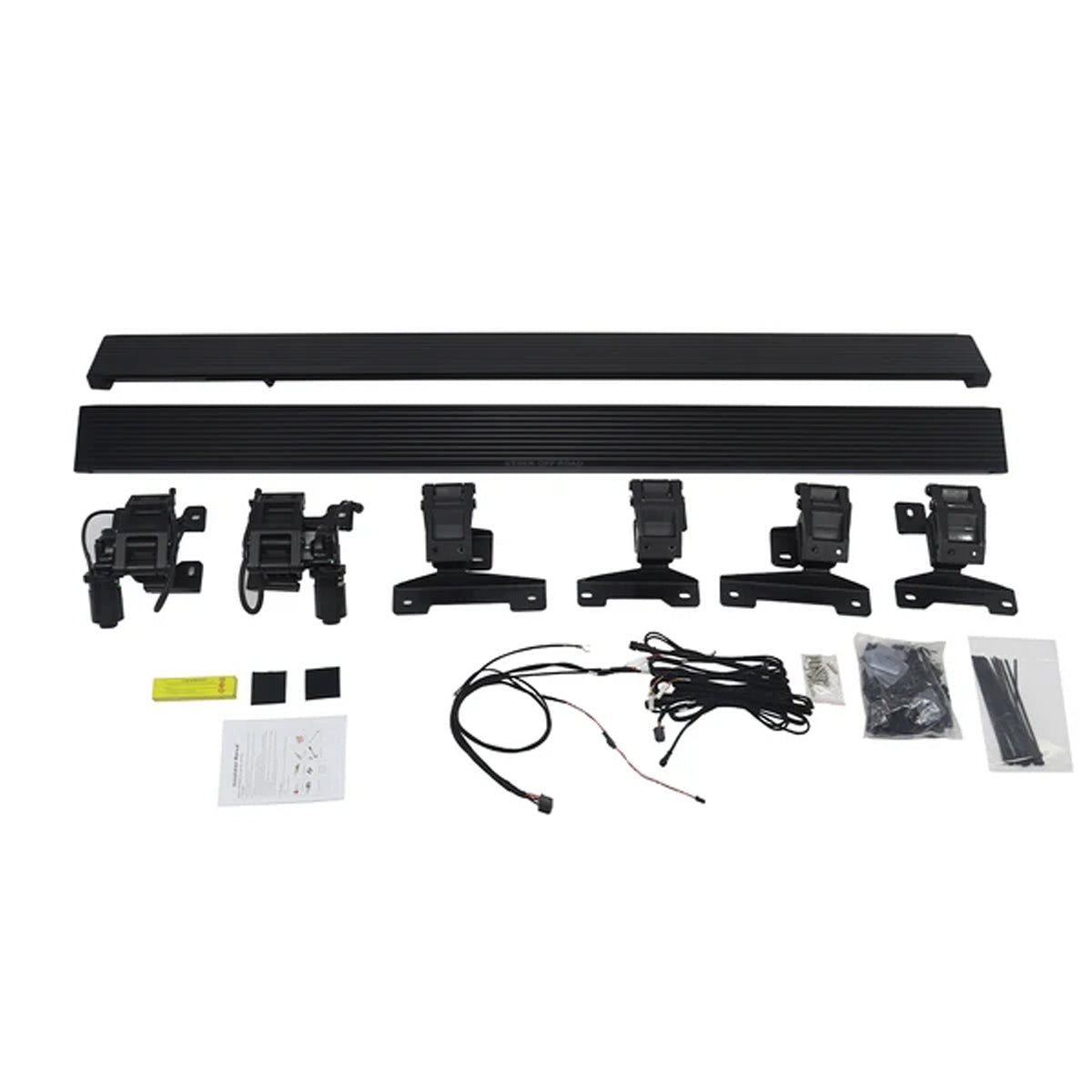

Package Includes

• 2 × Aluminium Alloy Step Panels
• 6 × Heavy-Duty Steel Mounting Brackets
• 2 × IP67 Sealed Electric Motors
• 1 × Standalone ECU Control Box
• 1 × Main Wiring Harness
• 1 × Terminal Signal Line
• 1 × Power Cord Fuse Wire
• 1 × Hardware Fastener Kit – M10 Flange Nuts & T-Bolts
• 1 × Installation Manual
